Electronic parts information

This section contains parts information for Steinberger instruments.

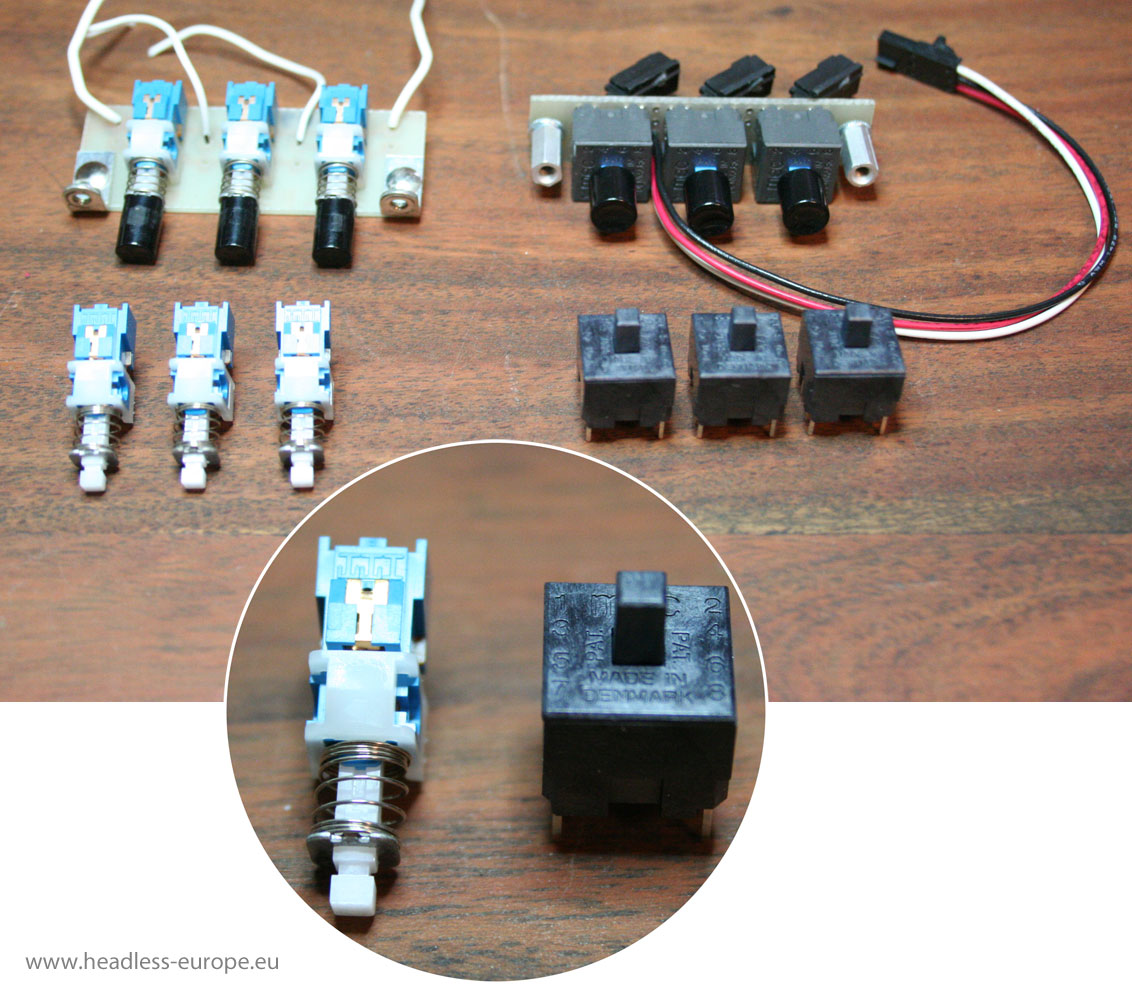

These are the original push-push pickup selector switches as used in most Newburgh and Nashville GL-3, GL-4 and GL-7 guitars. Please note: I've just got the switches, caps only for the blue switches, and no complete switch boards/PCBs.

These switches can be ordered here.

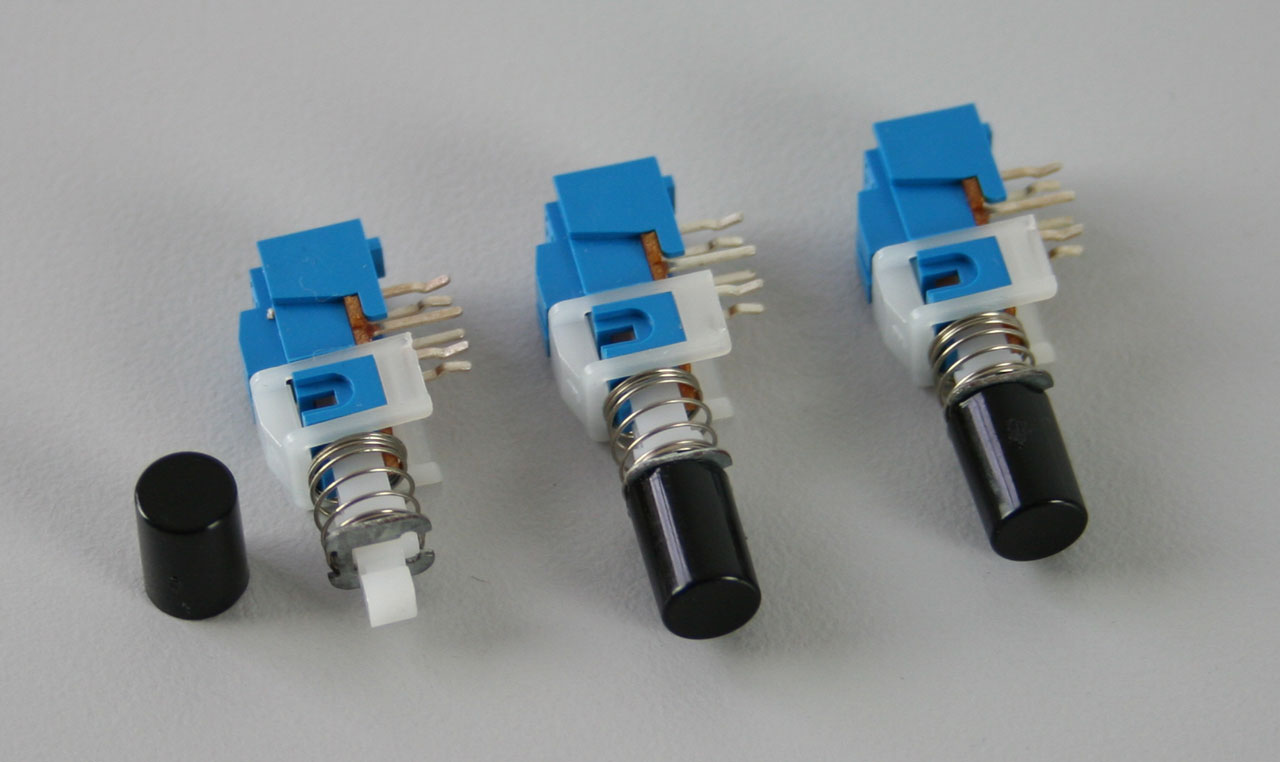

Black switch caps for the blue switches…

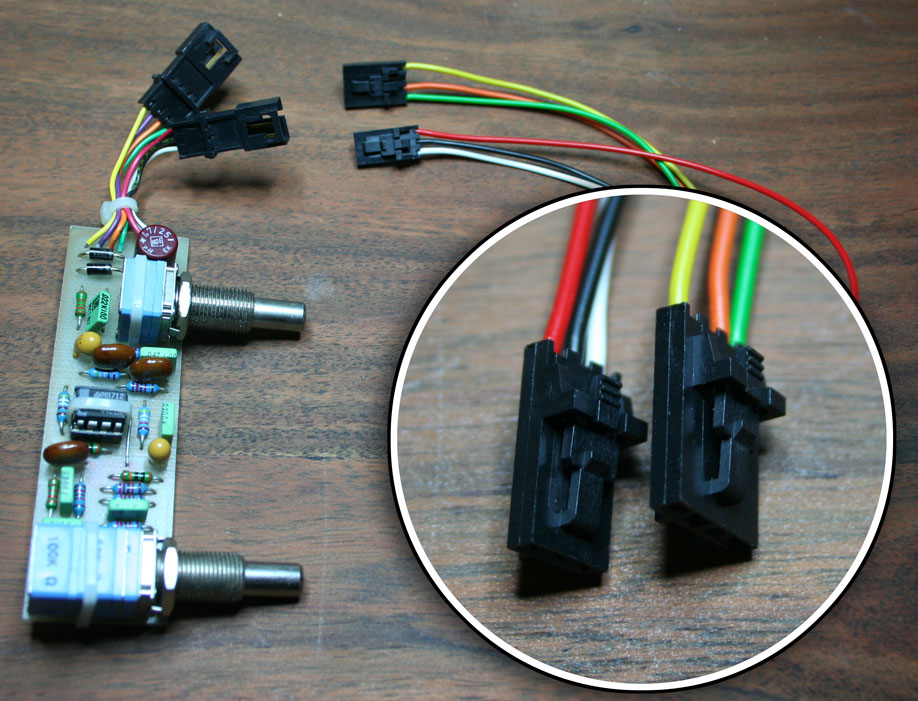

New HazLabs boards, when bought directly from HazLabs, contain the required connector sets. However, every time I've bought a board on ebay or elsewhere, it was missing the connector set, which is (usually) soldered to the pickup selector switch and the output jack. These connectors work with the old and the new board, so if you're missing them too, here you go…

These connector sets can be ordered here.

See the Electronics/wiring section for how to connect them in your guitar (e.g., the GM-7 wiring PDF).

See this interesting repair information about repairing the HazLabs active EQ board:

HAZ Labs V2 active EQ repair (external link to www.finebergers.net)
